Spiral Round Flat Oval Duct Machine

Spiral Round Flat Oval Duct Machine

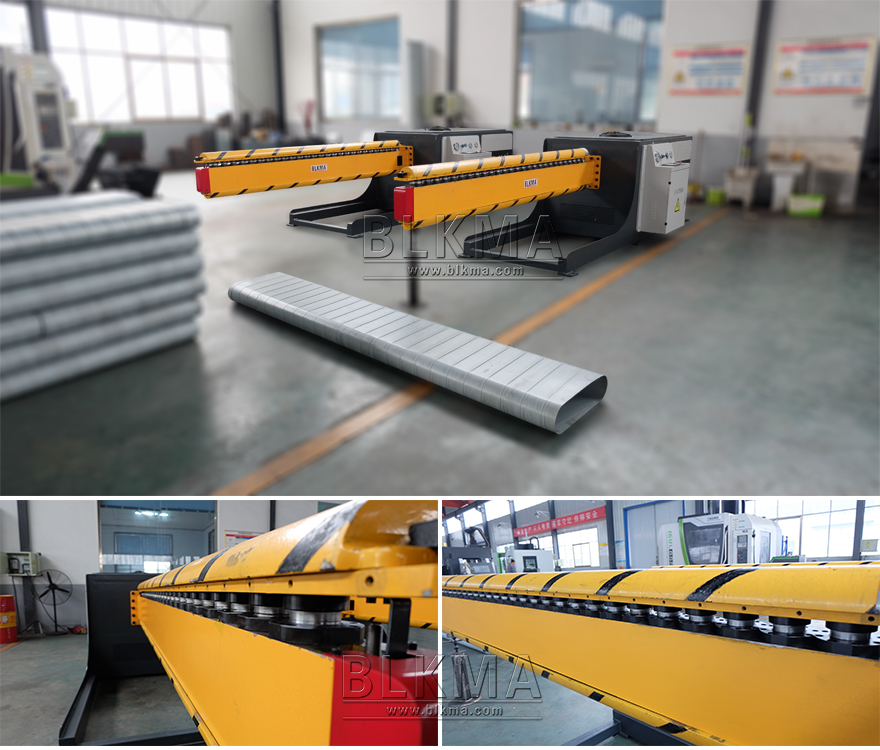

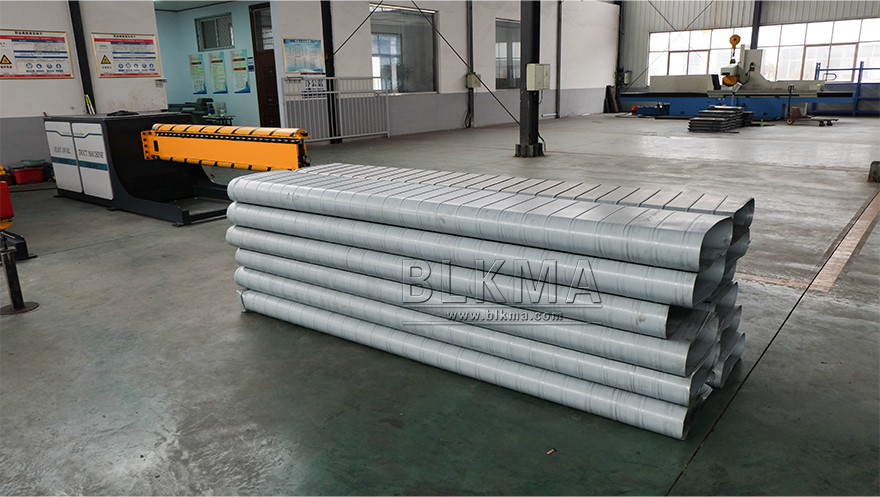

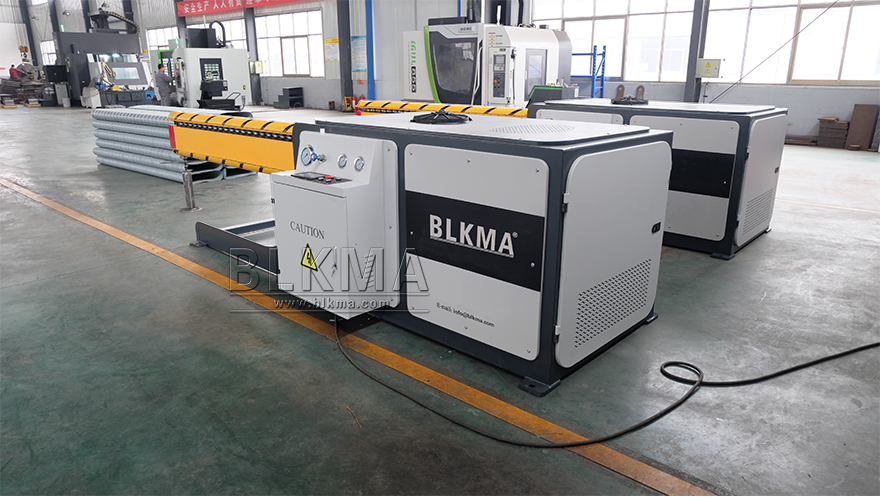

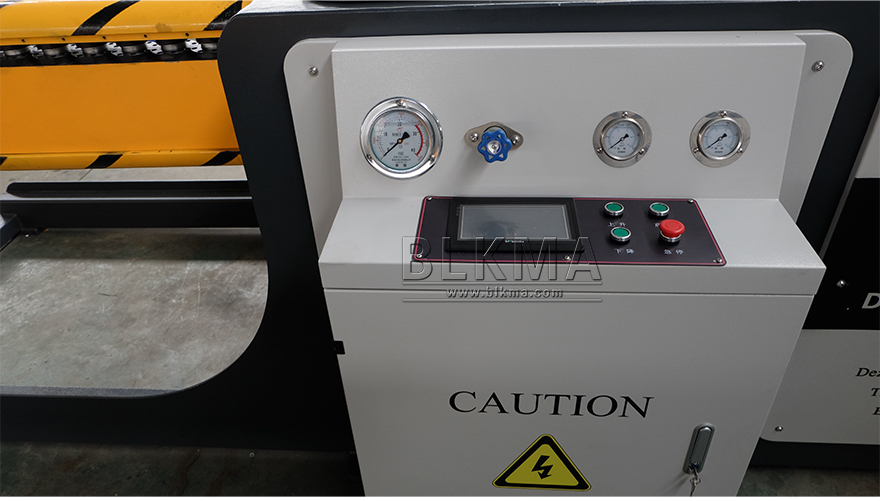

BLKMA Company Spiral duct oval machine transforms smooth and corrugated round spiral duct into the Flat-oval duct. Machine control is by PLC, and the LCD UNIT on the operator's panel stores all set parameters for easy recall by the operator when required.
  • Product Description
  • Video

Product Description of Spiral Round Flat Oval Duct Machine

  • Oval duct machine will satisfy most ductwork requirements in the Heating, Ventilating and Air-Conditioning industry.
  • It will adjust to a variety of Round Duct sizes between 18”(450mm)
  • and 60”(1500mm) diameter into Flat-Oval Ductwork.


Main Technical Parameters of Spiral Round Flat Oval Duct Machine

Thickness range

0.4-1.2mm

Maximum duct length

3000mm

Arm range

Minimum diameter 500-1500mm

Die specification

¢150,¢200,¢250,¢300,¢350,¢400,¢450,¢500mm

Tray specification

50,100,200,300,400,500,600mm

Motor power

7.5KW

Weight

2200kg

Dimension

6000mm*1300mm*1200mm


Flat Oval Duct MachineFlat Oval Duct MachineFlat Oval Duct MachineFlat Oval Duct Machine
