High-Performance Engineering: Industrial Applications of the Spiral Round Flat Oval Duct Machine

Selecting the right ductwork geometry is one of the most critical decisions in modern commercial HVAC engineering. While standard round spiral ducts provide excellent pressure retention and minimal friction, they require substantial vertical clearance. Conversely, traditional rectangular ducts fit tight spaces but introduce high static pressure loss, air leakage risks, and excessive metal resonance.

To resolve these conflicting engineering requirements, mechanical contractors rely on flat-oval duct networks. These systems preserve the aerodynamic properties of a round pipe while maintaining a flattened, space-saving profile. Manufacturing these precision shapes efficiently requires a highly specialized industrial oval machine. Understanding the diverse architectural applications of this technology allows air duct fabrication facilities to optimize production floor outputs and secure high-margin project contracts.

Commercial High-Rises and Premium Office Spaces

In commercial high-rise architecture, floor-to-ceiling clearance is directly tied to developer profitability. Maximizing the number of rentable floors within a fixed structural height means structural engineers must compress the overhead plenum space—the gap between the dropped ceiling and the concrete floor slab above.

When standard round piping is too large to fit through these narrow structural corridors, reverting to rectangular configurations forces contractors to use heavier gauges and complex external reinforcement bracing to prevent duct deflection. An industrial oval machine solves this issue. By restructuring standard round tubes into low-profile flat-oval shapes, it allows HVAC contractors to route high-velocity air networks through highly restrictive overhead zones.

Furthermore, premium office environments demand exceptionally low ambient noise levels. Because flat-oval profiles feature curved, continuous side walls instead of sharp 90-degree corners, they prevent the pressure-induced "rumbling" or "oil-canning" noise typical of flat-sheet rectangular designs, ensuring a quiet interior workspace.

Underground Structures and Subterranean Parking Garages

Subterranean parking structures, transport tunnels, and basement utility complexes present harsh operational conditions for ventilation networks. These environments feature extremely low overhead clearances, high ambient humidity, and strict structural code mandates to maintain vehicle drive-clearance heights.

For a specialized sheet metal workshop, supplying these public projects requires machinery that can process heavy-gauge materials without destroying protective surface treatments. The BLKMA flat oval duct configuration system uses smooth, continuous hydraulic expansion to form the flat-oval profile from a pre-rolled round pipe.

This precise mechanical transformation allows the duct to withstand the high positive and negative static pressure loads required by underground smoke extraction and emergency ventilation fans. Because the process applies uniform, radial force, this specialized oval machine shapes the metal without scratching or flaking the heavy-duty galvanized zinc coating, ensuring the finished ductwork retains its long-term rust resistance in humid, underground environments.

Industrial Cleanrooms and Laboratory Facilities

Pharmaceutical manufacturing plants, semiconductor fabrication facilities, and medical cleanrooms operate under stringent environmental controls. These facilities require specialized laminar airflow distribution systems that eliminate any internal zones where dust, moisture, or microbial contaminants can accumulate.

Traditional rectangular ducts present a major contamination risk because their 90-degree internal corners create stagnant air pockets where microscopic particulates settle out of the airstream. Flat-oval ducts eliminate these dead zones. The continuous, sweeping radii formed by an automated oval machine ensure a smooth, unobstructed airflow profile that naturally sweeps particulate matter through the filtration system.

Additionally, because flat-oval ducts require fewer joint connections and less seam-sealing compound than rectangular configurations, the risk of chemical outgassing or joint leaks that could compromise a sterile cleanroom environment is reduced to an absolute minimum.

Exposed Architectural Layouts and High-End Commercial Venues

Modern architectural trends frequently favor industrial-chic design styles, where mechanical, electrical, and plumbing (MEP) systems are left completely exposed to view. This aesthetic choice is prominent in modern airport terminals, sports stadiums, convention centers, and high-end retail shopping malls.

In an exposed installation, the visual appearance of the ductwork is just as important as its mechanical performance. Traditional rectangular ducting often appears bulky, uneven, and requires frequent external tie-rods and reinforcement joints that disrupt the clean lines of the ceiling.

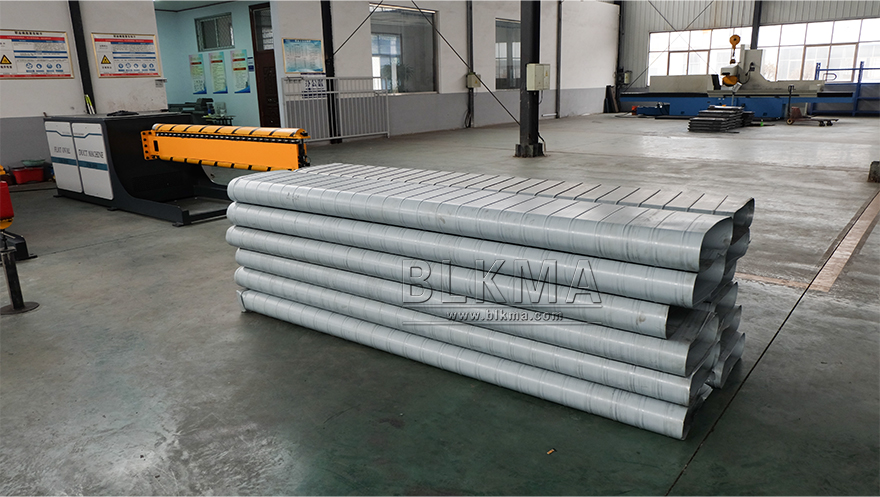

By contrast, flat-oval ductwork shaped by a precision oval machine offers a sleek, symmetrical appearance. The exterior surface remains perfectly smooth, uniform, and visually balanced across its entire length. Providing these visually premium products allows duct fabricators to target high-end commercial projects where aesthetic perfection is a non-negotiable contract requirement.

Integrating the Machine into an Automated Production Facility

To maximize efficiency across these diverse applications, the machinery must fit perfectly within an automated, high-volume production line. The equipment cannot work as an isolated station; it must be synchronized with upstream and downstream processing machinery.

• Upstream Processing: A high-speed spiral duct machine continuously converts raw galvanized or stainless steel coils into standard round tubes, creating an immediate, ready inventory of feed material.

• Component Optimization: Downstream from the shaping process, automated plasma cutters and specialized elbow making machine lines fabricate the corresponding flat-oval fittings, transitions, and multi-segment bends.

This unified manufacturing flow allows a factory to rapidly pivot production between high-volume round piping and space-saving flat-oval profiles, maximizing machinery utilization rates and boosting overall shop profitability.

Conclusion

The structural and aerodynamic advantages of flat-oval ductwork make it an indispensable choice for modern, space-restricted architectural projects. Whether managing tight ceiling spaces in commercial high-rises, meeting strict cleanliness codes in cleanrooms, or satisfying the aesthetic demands of exposed public venues, a high-performance oval machine gives fabricators the capabilities needed to win premium contracts.

As an industry leader with a deep manufacturing heritage dating back to 1994, BLKMA has established itself as an authority in the pipeline processing machinery sector, actively participating in national manufacturing standards from our modern production facility in Ma'anshan, Anhui Province, China. By manufacturing all core tooling and machinery completely in-house, BLKMA guarantees seamless system compatibility and long-term mechanical reliability, helping every partner operate as a highly competitive, market-leading sheet metal fabricator.
