Round Duct Hydraulic Elbow Machine

Round Duct Hydraulic Elbow Machine

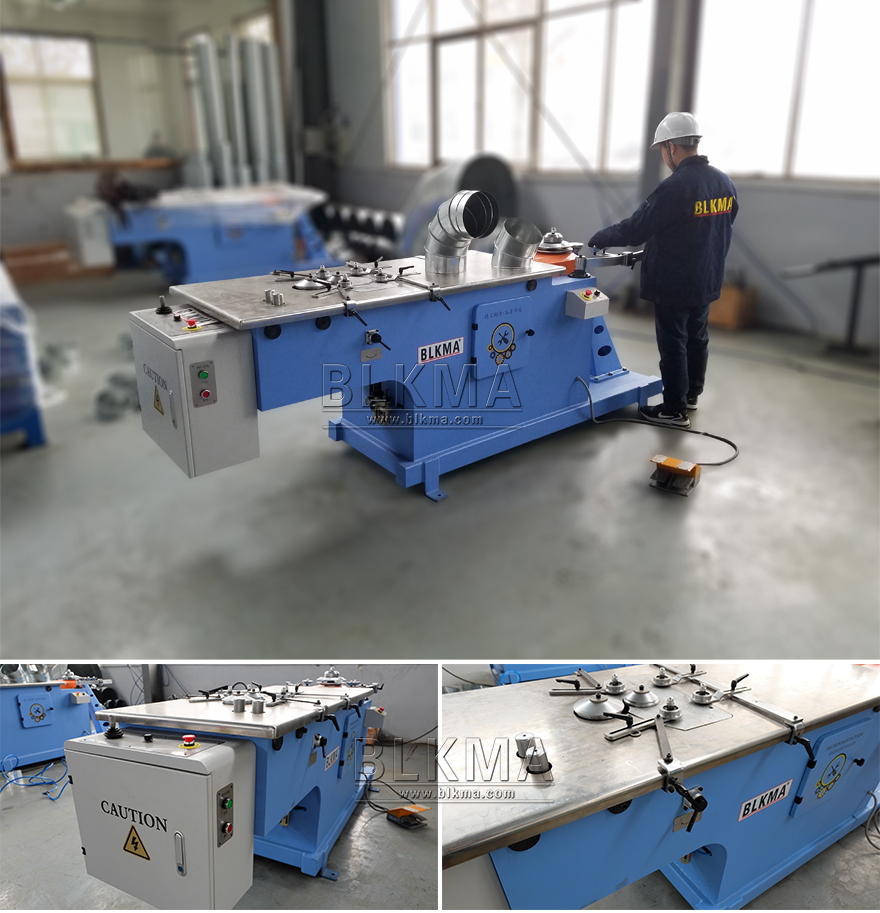

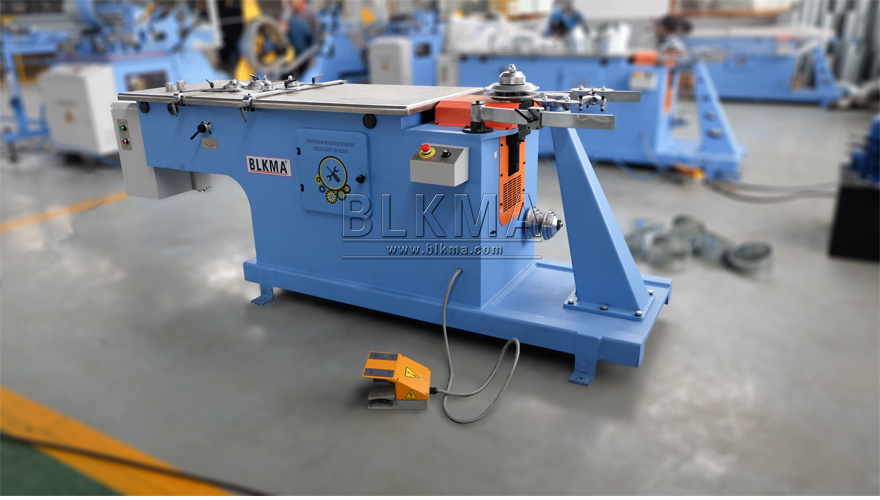

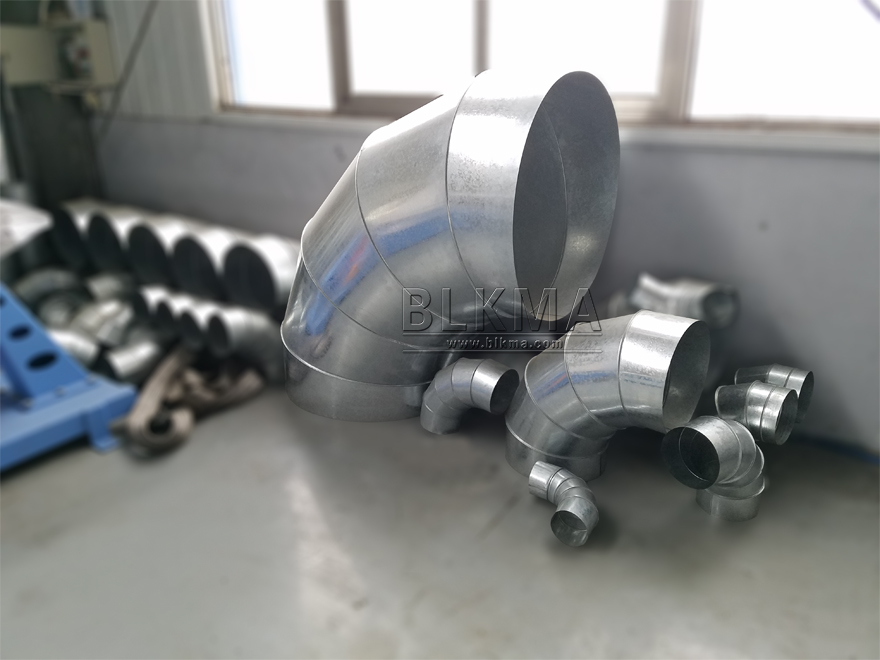

BLKMA company hydraulic round duct elbow making machine is for producing round elbows in ventilation & air conditioning system. With hydraulic power to ensure higher capacity and better speed for spiral round duct.
  • Product Description
  • Video
BLKMA company hydraulic round duct elbow making machine is for producing round elbows in ventilation & air conditioning system. With hydraulic power to ensure higher capacity and better speed for spiral round duct.

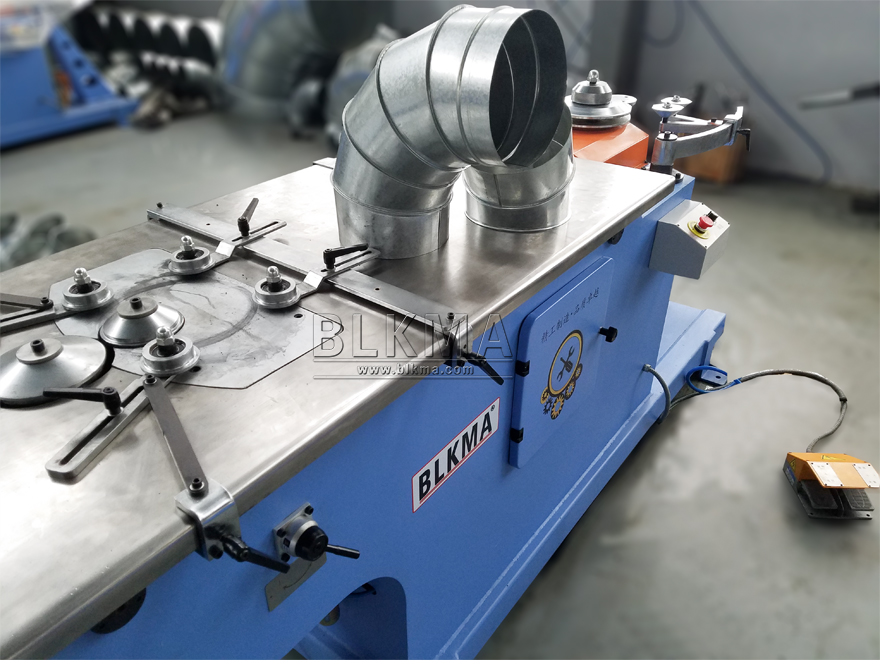

There are two worktables: worktable height can be adjustable, which is easy for changing the male and female opening. Roller has a hydraulic motor drive, adjustable speed, roller forward and backward also use cylinder drive, smooth and efficient working performance.

Features of round duct elbow making machine

  • Dual workstation, maximum flexibility to eliminate changing over
  • Higher production speed  to ensure higher flanging speed
  • Optimised roller's profile, improved seamed quality
  • All rotating parts are hardened and high-grade steel, virtually maintenance


Main technical of round duct elbow making machine

1

Diameter

100-1250mm

2

Thickness

0.4-1.2mm

3

Mini dia

100MM

4

Rolling speed

120m/min (Adjustble)

5

Suitable material

Galvanized steel, stainles steel,aluminum steel

6

Main motor power

4KW+120W (cooling fan)

w

Hydraulic oil

55L

8

Air compressor

0.8MPa

9

Dimension

2700x700 x 1200mm

10

Weight

760K


Round Duct Hydraulic Elbow MachineRound Duct Hydraulic Elbow MachineRound Duct Hydraulic Elbow MachineRound Duct Hydraulic Elbow Machine
