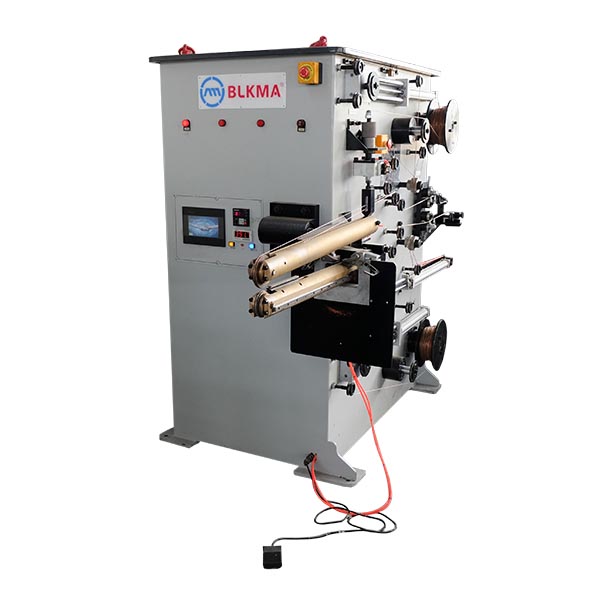

Round Duct Stitch Welding Machine

Round Duct Stitch Welding Machine

This round duct stitch welding machine is used for welding vertical seam of round duct. Advantage is high-speed, material-saving, seaming tighter and seaming joint firmer.
  • Product Description
  • Video

Parameters:

Model:BASWM-600
1. Input voltage: 3-phase, 380V ± 10 %
2. Rated welding capacity: 40KVA
3. Rated Load Persistence Rate: 40 %
4. Speed of feeding wire: 6.0--12 m/min
5. Diameter of wire: Φ3.0 mm
6. Secondary output voltage: 1.6--3.2 V ( when controller energy is biggest )
7. Secondary voltage: 6 grade
8. Minimum diameter of welding: 100 mm
9. Maximum length of welding: 600 mm
10.Sheet thickness: 0.5—1.0mm
11.Motor: AC electromagnetic motor
12.Dimension: 2200*1100*1600 mm

Round Duct Stitch Welding Machine

Round Duct Stitch Welding Machine

Round Duct Stitch Welding Machine

Round Duct Stitch Welding Machine
