Precision and Efficiency in Duct Manufacturing: The Power of the Spiral Pipe Machine

Automation and Design Excellence in Spiral Pipe Machine Technology

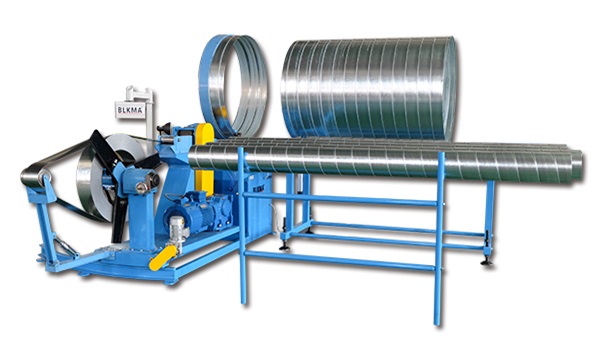

In modern HVAC duct manufacturing, the spiral pipe machine stands as a vital piece of equipment that combines automation, accuracy, and reliability. Designed for continuous production of round spiral ducts, this machine ensures precise forming and cutting across various diameters and lengths. Based on the principle of using a pipe mold to shape the spiral structure, the spiral pipe machine provides seamless automatic operation that meets diverse industrial requirements. Its advanced construction allows manufacturers to achieve consistent quality while minimizing manual intervention. The ability to automatically produce spiral ducts of varying sizes not only enhances productivity but also ensures that every pipe maintains uniform strength and a polished finish. This high level of precision and automation has made the spiral duct machine a preferred choice among HVAC manufacturers worldwide.

Performance and Technical Highlights of the Spiral Pipe Machine

The spiral pipe machine is built to deliver both speed and precision. The BAL-1500 model covers a diameter range from 100 mm to 1500 mm, handling sheet thicknesses between 0.5 mm and 1.2 mm, with a feeding speed of up to 35 meters per minute and a power capacity of 16 kW. For applications requiring even higher flexibility, the BAL-1500C variant supports diameters as small as 80 mm and achieves speeds up to 45 meters per minute. Both models feature compact, durable structures with optimized dimensions for efficient space utilization and mobility. The machine's ability to produce custom lengths and integrate a high-speed automatic cutting system guarantees clean, accurate results for every section of duct produced. Its robust mechanical design ensures stability during continuous operation, while its user-friendly control panel allows operators to easily adjust parameters for different duct specifications, capabilities that are also foundational for a precision spiral pipe bending machine.

Key Imported Configurations and Advanced Components

Precision and durability in the spiral pipe machine are ensured by its integration of world-class imported components. The system is equipped with a Siemens control system from Germany, providing reliable automation and smooth coordination of all production processes. The Schneider electrical system enhances safety and electrical stability, while the FESTO pneumatic cylinders from Germany ensure smooth mechanical motion and consistent air pressure control. The hydraulic system from Beijing Huade offers dependable performance for cutting and forming functions, and the Omron encoder from Japan guarantees precise synchronization and measurement throughout the process. Together, these imported configurations form a comprehensive system that delivers superior operational reliability and long-term efficiency in industrial duct manufacturing.

How Does the Spiral Pipe Machine Enhance Manufacturing Efficiency?

The efficiency of the spiral pipe machine lies in its ability to integrate multiple production functions—forming, cutting, and sizing—into one seamless automated process. The CNC-controlled system allows for quick adjustments between diameters and lengths without manual recalibration. The automatic feeding and cutting mechanism ensures consistent pipe dimensions and smooth edges, significantly reducing material waste, a hallmark of engineering from leading spiral duct machine manufacturers.  This streamlined operation enhances throughput, allowing factories to produce more ducts within shorter time frames while maintaining high standards of precision. Moreover, the aesthetically pleasing design of the ducts produced by this machine has received widespread acclaim for its smooth surface finish and consistent roundness, which improve airflow efficiency in HVAC systems. The combination of speed, precision, and visual quality ensures that each duct meets both performance and aesthetic requirements.

Integration and Complementary Equipment

To complete the full process of spiral duct fabrication, the spiral pipe machine is often paired with additional forming equipment such as a round elbow machine and an angle steel round rolling machine. These complementary machines work in harmony to achieve accurate dimensions and a refined final product, forming a comprehensive china round duct making machine line. Each piece of equipment plays a crucial role in shaping, connecting, and reinforcing the ductwork used in large ventilation systems. The spiral duct machine serves as the core of this setup, while auxiliary equipment ensures versatility and the ability to handle complex duct configurations. By integrating these machines into one production workflow, manufacturers can produce ducts that not only meet functional requirements but also exhibit superior structural integrity and appearance.

Conclusion

The spiral pipe machine remains the cornerstone of spiral duct manufacturing, combining innovation, precision, and high-speed automation. Its continuous improvements have led to faster and more efficient production, allowing manufacturers to stay ahead in the competitive HVAC industry. With its reliable performance, advanced imported components, and customizable operation, the spiral duct machine offers a robust solution for producing high-quality, aesthetically appealing ducts that meet the strictest industry standards. For duct manufacturers seeking to enhance production efficiency and product quality, adopting a high-performance spiral pipe machine represents a strategic step toward smarter, more efficient, and globally competitive manufacturing.
